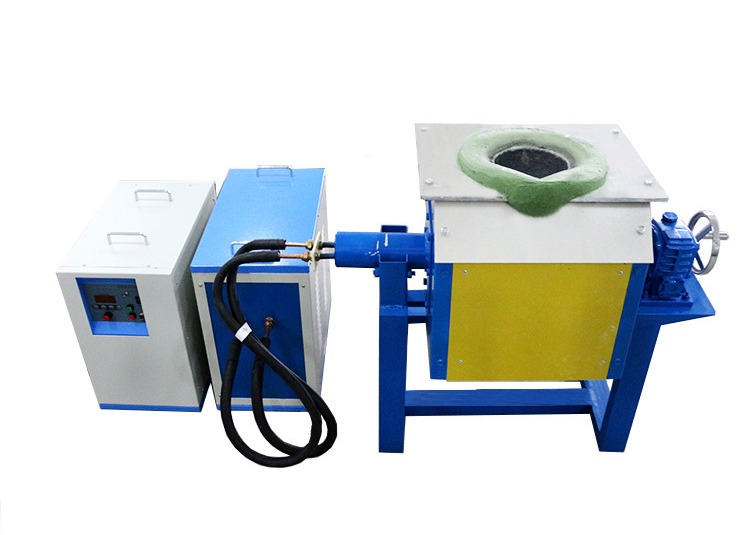

Industrial electric induction small capacity tilting small furnace for melting metal description
The medium frequency furnace is a power supply device that converts the power frequency 50Hz alternating current into the medium frequency (above 300Hz to 1000Hz). It converts the three-phase power frequency alternating current into direct current after rectification, and then converts the direct current into adjustable medium frequency current to supply the medium frequency alternating current flowing through the capacitor and induction coil. It generates high-density magnetic lines in the induction coil, cuts the metal materials contained in the induction coil, and generates a large eddy current in the metal materials.
Industrial electric induction small capacity tilting small furnace for melting metal feature
1.Induction heating melting furnace use crucible high temperature to heat metal.then can melt,refine,casting,etc production.
2.Can melt platinum, rhodium and palladium,gold,silver,copper,steel,aluminium, Activated carbon, gold dust sands, electrolysis mud, gold and silver powder, tin ash tin slag etc.
3.Induction heating melting furnace can melt weight from 0.001KG--500KG per time.melting time from 5-40 minutes. max temperature will be 1500C--2000C.
4.Induction heating melting furnace have fixed type,push out type,auto pouring type,furnace up down moving type.
Industrial electric induction small capacity tilting small furnace for melting metal heating principle
The flow of high-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.
Industrial electric induction small capacity tilting small furnace for melting metal technical parameter
| Output power | 35KW | Dimension(mm) | 460*360*365mm |
| Oscillation frequency | 1~20KHz | Gross Weight | 190Kg |
| Voltage range | 360V~420V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 70A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100% |
| Application | Melting gold, silver, copper, iron, steel, stainless steel, platinum and any metal items |
Industrial electric induction small capacity tilting small furnace for melting metal packaging & delivery
1. All the goods will be test and packed well before shipping to avoid damage during delivery.
2. Plastic inside,Polyfoam filled,Carton Outside.
3. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
Company Information
Contribute to the foreign trade and build an excellent supplier in Central plains of China, Zhengzhou Iris Imp & Exp Co., Ltd follows the "professional foreign trade, happy business" spirit of enterprise, and contribute to export the Chinese industrial machinery in overseas market. Our business scope includes: KGPS series thyristor medium frequency heating equipments (steel shell melting furnace, aluminum shell melting furnace, heating furnace), A two SCR series, parallel power supply, IGBT MF, HF super audio-frequency heating equipments (melting furnace, forging furnace, hardening furnace, welding machine, heating furnace), Electric resistance furnace, CNC quenching tool machines, cooling systems and ancillary transformer and other equipments.
|
|
Industrial electric induction small capacity tilting small furnace for melting metal Images
|
